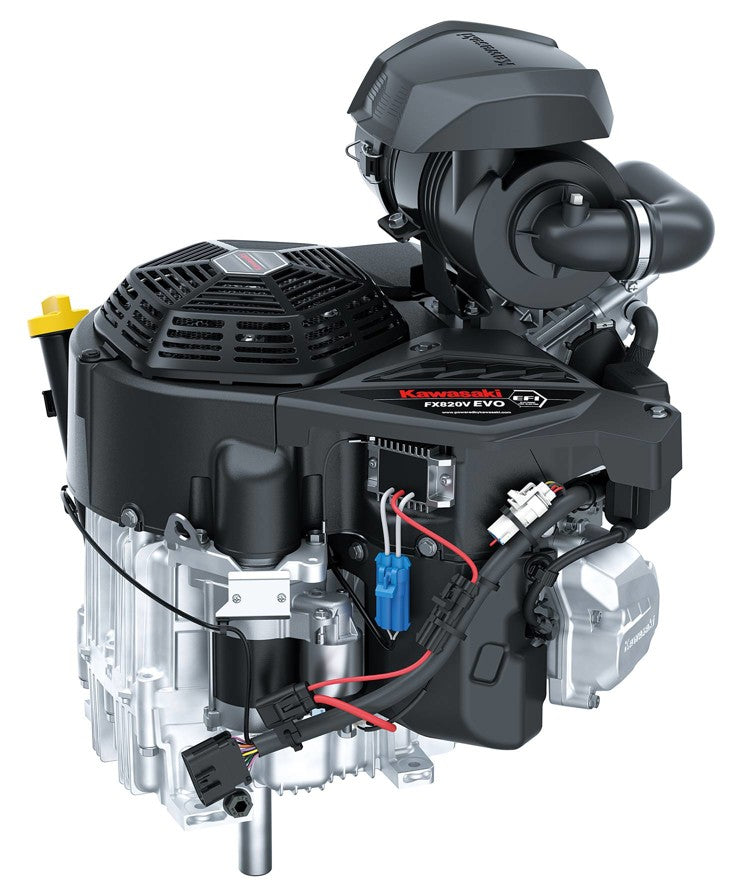

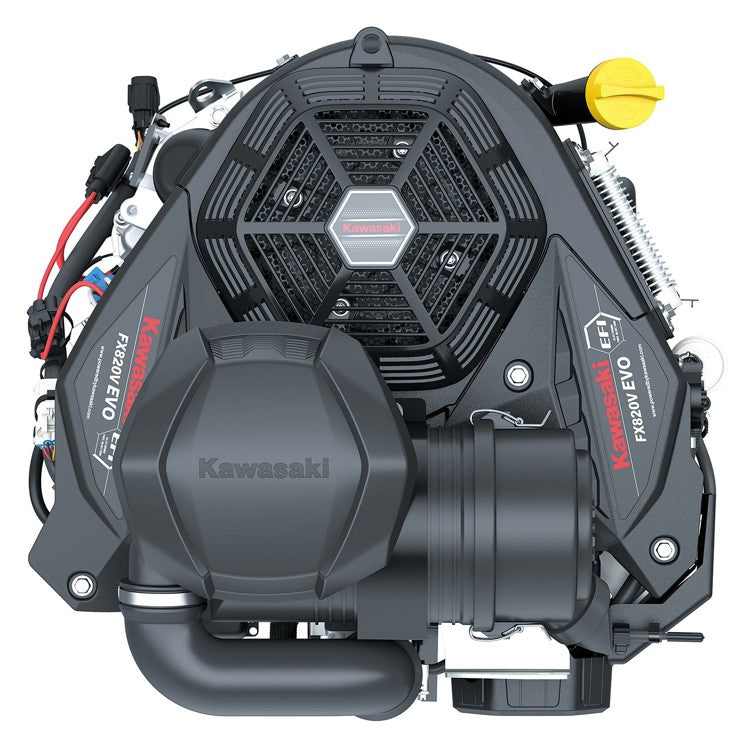

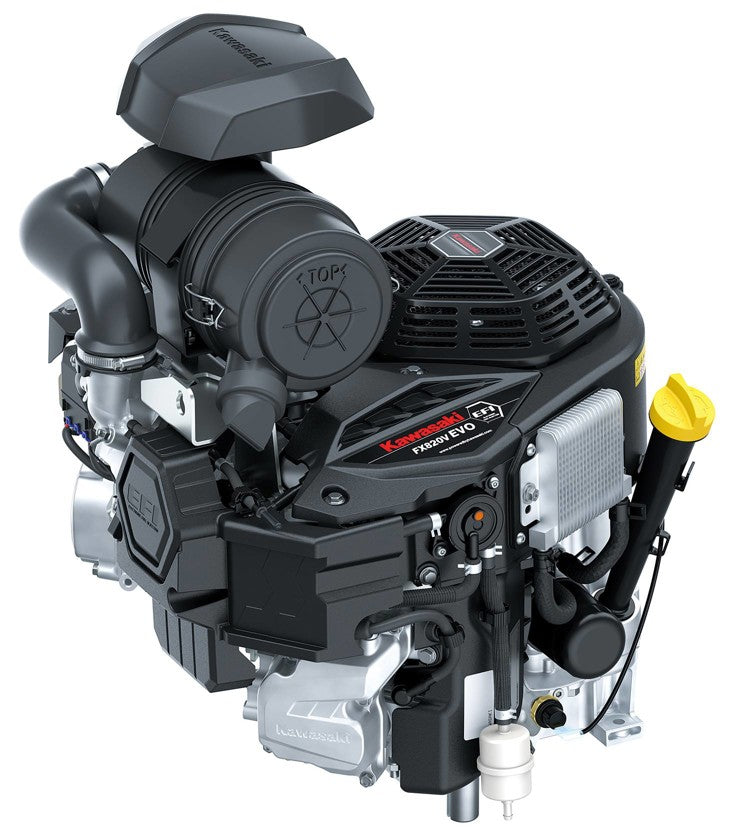

Kawasaki 34.5HP Replacement Engine #FX820AAS00S

• Displacement - 822 cc (50.2 cu. in.)
• Number of Cylinders - 2
• Bore x Stroke - 3.2 x 2.99 in. (83 x 76 mm)
• Compression Ratio - 9.1:1
• Oil Capacity w/filter - 2.2 quart (2.5 liter) w/oil filter change
• Maximum Power - 34.5 hp (25.4 kW) / 3600 rpm
• Maximum Torque - 50.4 ft-lbs (68.2 N·m) / 3600 rpm
• Dry Weight - 138.9 lbs (63.0 kg)

• 90 degree V-twin
• Integrated electronic throttle control unit
• Pressurized lubrication system
• Electronic ignition with variable spark timing
• Sequential multiport fuel injection
• Compact electronic control unit
• Electronic altitude compensation
• High-pressure fuel injection technology with electric fuel pump
• Die-cast, three-valve cylinder heads
• Commercial canister air filtration system
• Pent-roof combustion chamber
• Oversized inspection cover
• Large oil fill
• Starter - Shift
• Charge- 30 AMP
• Muffler - Without

* Includes specific EFI calibration to enable a tachometer alternating signal.

AN EVOLUTION OF KAWASAKI EXCELLENCE These new engines offer an exceptional advantage when it comes to performance and results. Engineered to accommodate more installations and applications while dialing up plenty of horsepower, EVO engines provide top-line power density—a signature feature of the Kawasaki FX Series. Plus, they’re efficient, helping you use less gas and produce lower emissions. Put it all together and you’ve got engines made to meet modern demands. Standard features include: Integrated electronic throttle control unit; Pressurized lubrication system; Electronic ignition with variable spark timing; Sequential multiport fuel injection; Compact electronic control unit; Electronic altitude compensation; High-pressure fuel injection technology with electric fuel pump; Low-pressure cast, three-valve cylinder heads; Commercial canister air filtration system; Pent-roof combustion chamber; Oversized inspection cover; Large oil fill
