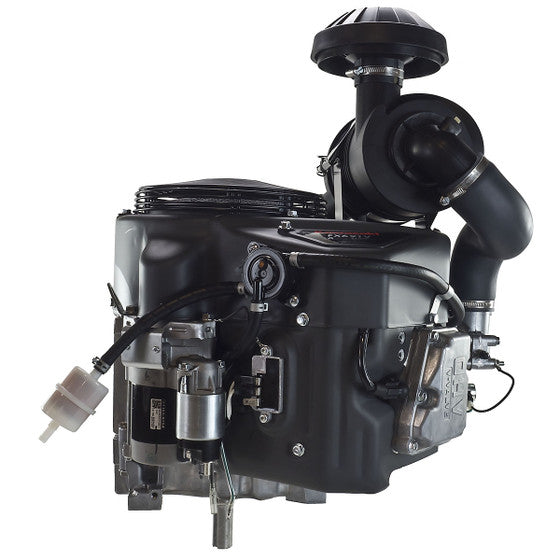

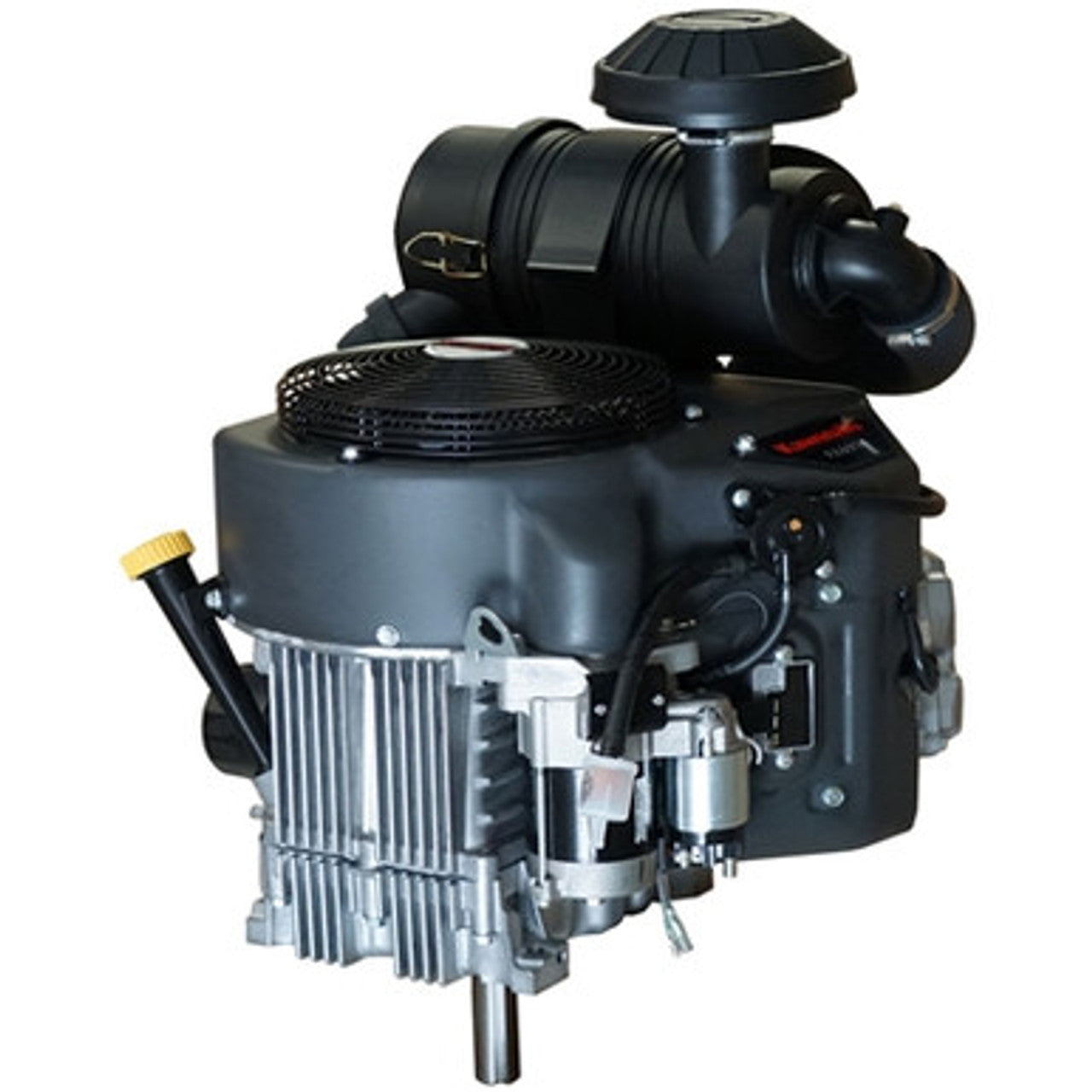

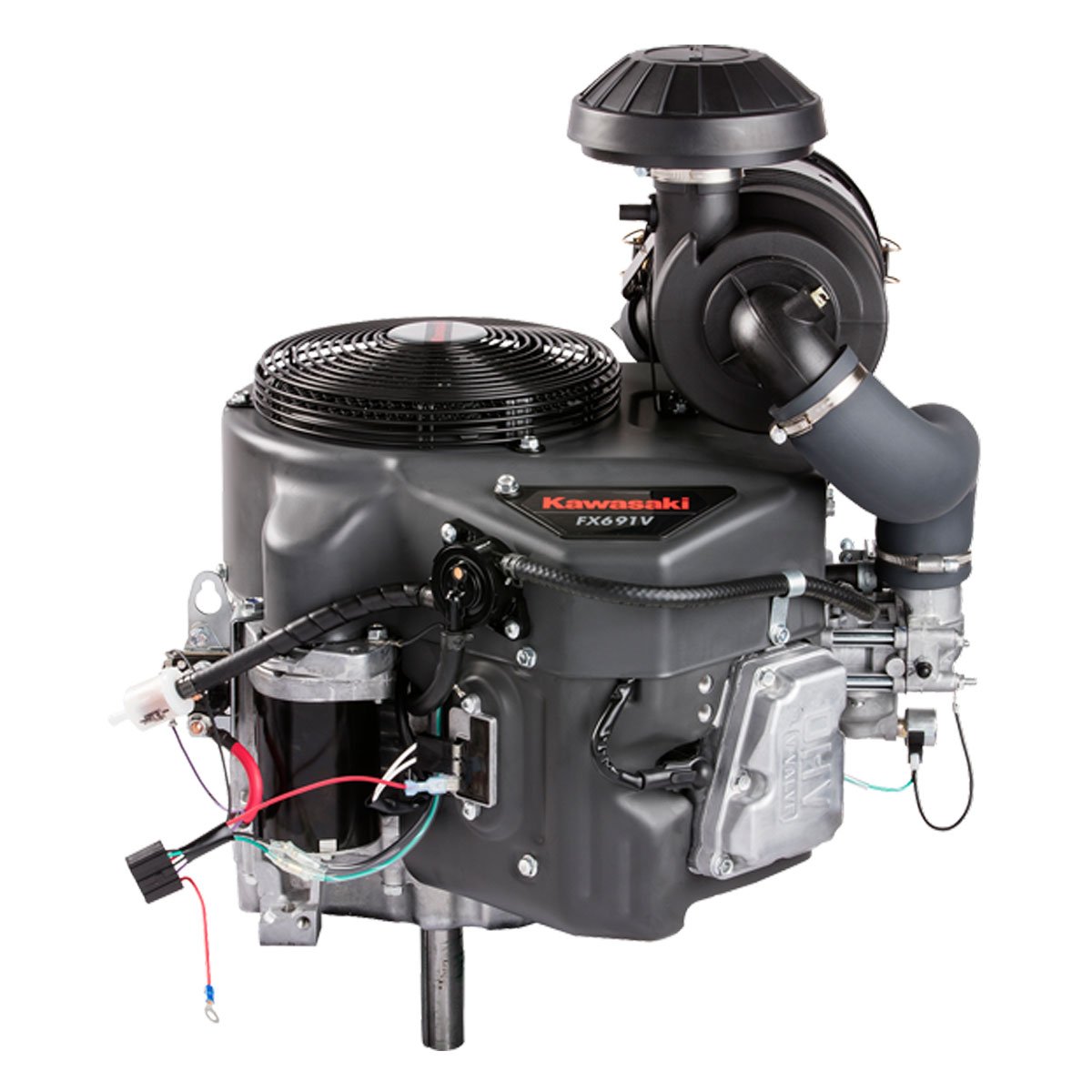

Kawasaki 22HP Replacement Engine #FX691VGS06S

• Displacement - 726 cc (44.3 cu. in.)
• Number of Cylinders - 2
• Bore x Stroke - Bore x Stroke - 2.9 x 2.8 in.(73 x 72mm)
• Compression Ratio - 8.2:1
• Oil Capacity w/filter - 2.2 U.S. qt (2.1 liters)
• Maximum Power - 22.0 hp (16.4 kW) at 3,600 RPM
• Maximum Torque - 39.3 ft-lbs (53.2 N·m) at 2,200 RPM
• Dry Weight - 101.4 lbs (46.0 kgs)

• Overhead v-valve
• 90° V-twin
• Pressurized lubrication system
• Electronic spark ignition
• Automatic compression release
• Rotating metal grass chopper screen
• Multi-Stage canister air filter
• Cast-iron cylinder liners
• Metal engine cover with integrated clean out ports
• Heavy duty shift-type starter
• Starter - Bendix
• Charge - 15 AMP
• Muffler - Optional

Heavy-Duty Canister air filter; Metal shrouds with clean out ports
