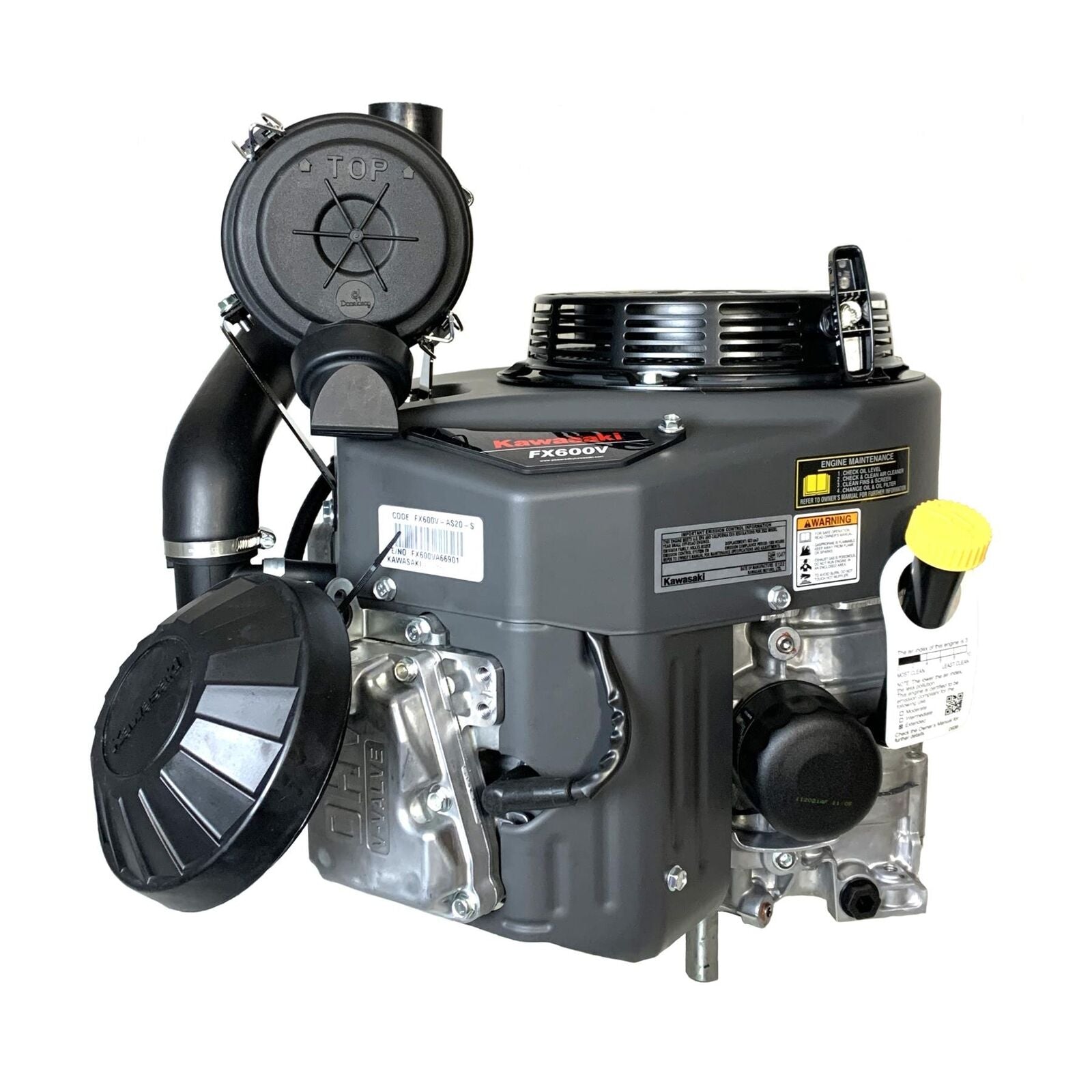

Kawasaki 19HP Replacement Engine FX600VFS05S

• Displacement - 603 cc (36.8 cu. in.)
• Number of Cylinders - 2
• Bore x Stroke - 2.9 x 2.8 in. (73 x 72mm)
• Compression Ratio - 8.1:1
• Oil Capacity w/filter - 1.8 U.S. qt (1.7 liters)
• Maximum Power - 19.0 hp (14.2 kW) at 3,600 RPM
• Maximum Torque - 32.5 ft-lbs (44.0 N·m) at 2,200 RPM
• Dry Weight - 89.7 lbs (40.7 kgs)
• Overhead v-valve - 90° V-twin

• Overhead v-valve
• 90° V-twin
• Pressurized lubrication system
• Electronic spark ignition
• Automatic compression release
• Internally vented carburetor
• Rotating grass chopper screen
• Multi-Stage canister air filter
• Cast-iron cylinder liners
• Metal engine cover with integrated clean out ports
• Heavy duty shift-type starter
• Starter - Shift
• Charge - 15 AMP
• Muffler - Optional

Heavy-Duty Canister air filter; Metal shrouds with clean out ports
